A Deep Dive into Smartgiant’s Source-Measurement Unit: Applications and Use Cases
The Source-Measurement Unit (SMU), one of our signature products, combines several features into a single, potent apparatus. Smartgiant‘s SMU’s exceptional performance and adaptability make it a vital instrument for numerous uses, including as component characterization, research and development, and electronics testing.

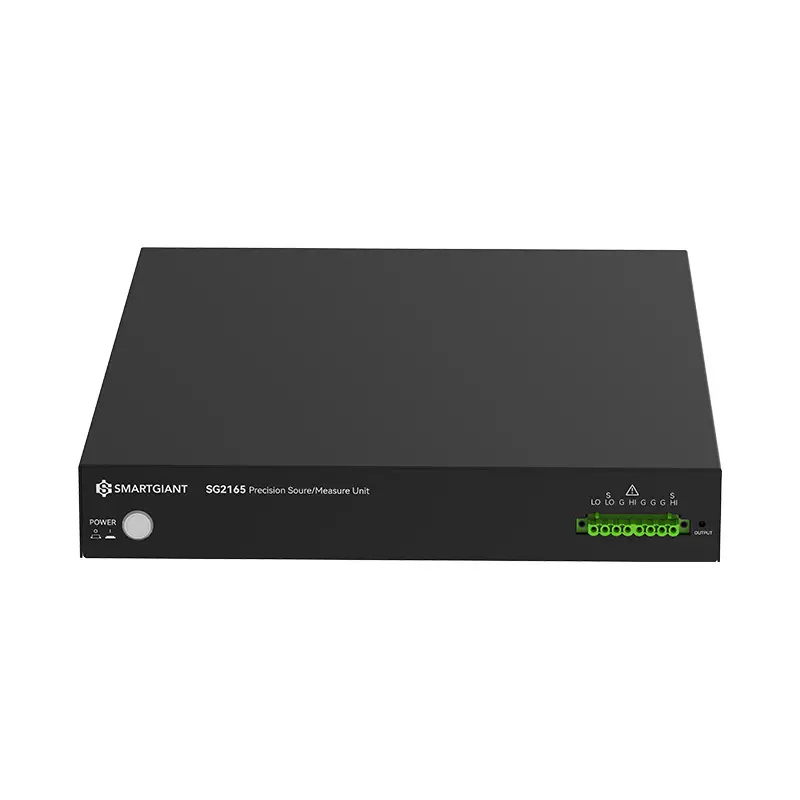

What is a Source-Measurement Unit?
The Source-Measurement Unit is designed to combine the functions of five essential instruments: a digital multimeter, voltage source, current source, electronic load, and pulse generator. By consolidating these capabilities into a single unit, we provide users with a comprehensive solution that simplifies complex testing processes.
When considering the Source-Measurement Unit, you can expect typical output sources to deliver impressive measurement accuracy of 0.02%. This level of accuracy is crucial for ensuring that your tests yield reliable data, allowing for better decision-making in design and troubleshooting. The ability to support both DC and pulse output modes adds another layer of flexibility, accommodating a wide range of testing scenarios.
Advanced Features for Precision Testing
Our Source-Measurement Unit is equipped with advanced features that enhance its utility in precision testing. The pulse output mode is particularly noteworthy, with a minimum pulse width of just 100 microseconds and a rise time of only 10 microseconds. This capability allows us to simulate various conditions, making it ideal for testing dynamic devices and circuits that experience rapid changes.
Versatility Across Diverse Applications
The versatility of our Source-Measurement Unit makes it suitable for a broad range of applications across different industries. In research laboratories, the SMU is used for characterizing semiconductor devices, enabling precise measurements of current-voltage characteristics. By combining multiple functions into one instrument, we can streamline the testing process and save valuable time.
In the field of electronics manufacturing, our Source-Measurement Unit is utilized for production testing of various components, ensuring that they meet quality standards before they are integrated into larger systems. Its compatibility with SCPI driver and commands further enhances its integration into automated testing setups, allowing teams to run extensive tests efficiently.
Additionally, industries such as telecommunications and automotive benefit from the SMU’s ability to conduct thorough diagnostics on advanced electronic devices. By providing precise measurements and sources, our device ensures that systems operate reliably under varying conditions.
Conclusion
Smartgiant’s Source-Measurement Unit stands out as a versatile and powerful solution for someone involved in testing and characterizing electronic components. With its ability to consolidate multiple testing functionalities into one unit, alongside features like high-precision measurement and pulse output modes, we enable engineers and researchers to streamline their workflows and achieve more accurate results.
