Maybe you are looking for good quality at an affordable price and timely delivery. We warmly welcome you to contact us and please feel free to speak out your needs We are looking forward to cooperating with you and providing our best services for you, as well as our High-speed DAQ, Nysa Modular Instruments,Test and Measurement Instruments. Over the past few years, our factory encourages creative thinking and innovative technologies, ensuring high-quality to excellence. Our experienced R&D team is here to provide you with professional support, all customized orders are acceptable, we ensure that every product meets the criteria for professional certification. We strive provide the best quality products, with competitive prices, precision in execution defines our work, putting you first is our mission. We are eager to cooperate with foreign companies which care much on the top-tier quality, stable supply, business reputation. Our High-speed DAQ will supply to many countries and areas, including East Asia, South Africa, United States, Australia, etc. As a reliable and professional company, Smartgiant Technology partners with skilled tech teams and offers the best solutions as well as High-speed DAQ all over the world.
Get Test & Measurement Technologies & Solutions!
Specializing in FPGA-based Control, Processing, and Scceleration technologies
High-Speed Daq Boost Profit – Consider other products?
PCIe High-Speed Acquisition Card
- 8-bit two-channel digitizer
- Maximum sampling rate up to 5 GS/s
- Analog bandwidth up to 500 MHz
- PCIe 3.0 x 8 interface
- FPGA based on Xilinx Kintex UltraScale, XCKU040
- Customization for hardware, FPGA and software

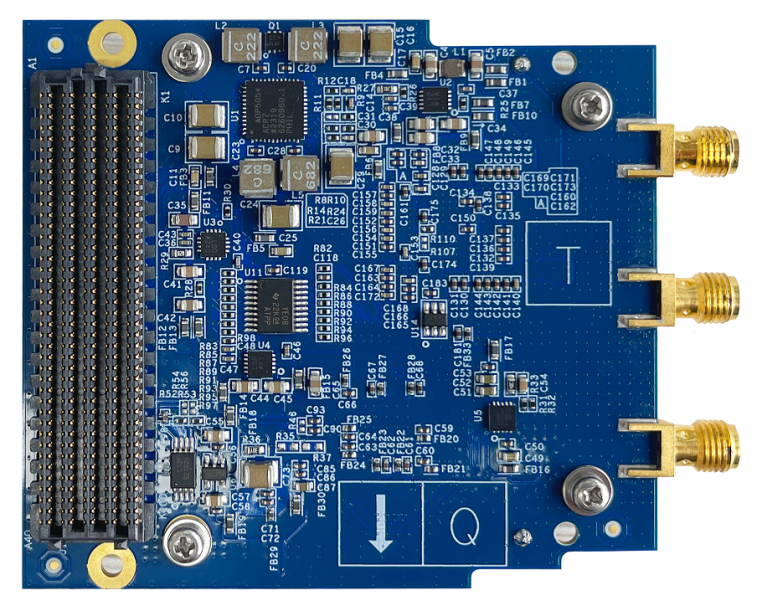

Data Logger (Plug-in)
• Resolution: 32 Bits
• Sampling Rate: 250 kSPS
• Recording dual-channel voltage inputs simultaneously and continuously
• Uploading raw data to the PC in real-time
Test Bench
- High-performance processor, adopting ZYNQ-7000 series processor, dual-core ARM Cortex-A9, with main frequency up to 866 MHz.
- High precision multimeter, resistance measurement 0 Ω to 100 MΩ, voltage measurement -60 V to 60 V, current measurement 0 to 3 A.
- Audio analyzer, supporting differential input/output and single ended input/output functions, with a sampling rate of up to 192 kps, and capable of measuring signal amplitude, frequency, THD, THD+N.
- Signal generator, supporting output of sine wave, square wave, triangular wave, up to 1 MHz output.
- Oscilloscope module, supporting ±0.9 Vpp input, up to 5 MHz bandwidth, 125 MHz sampling rate.
- Support multi-channel output power supply, multi-function serial port communication, DO output, button simulation, multi-channel load current switching measurement.
- Internal integrated relay switching matrix, RF switch, up to 18 GHz RF signal switching.
Horus AI Camera
• AI camera modules based on Rockchip RV1126
• Quad core ARM Cortex A7 processor
• Support NNIE performance up to 2.0Tops
• Offer USB2.0 x 1/Ethernet port x 1/UART x 2/TF card expansion interface
• Accelerates AI algorithm hardware deployment
• IPC 38-Board standard structure design, quick on-demand customization of enclosures
Argos AI Barcode Scanner
• Capable of 1D, DM, QR and dot codes can be scanned
• Support AI automatic barcode recognition acceleration
• Generate fast decoding templates by self-learning
• Support autofocus
• Compact size with triple-proof grade
Source-Measurement Unit (SMU)
• Combines the functions of five instruments (digital multimeter, voltage source, current source, electronic load, and pulse generator) into one unit.
• Typical output sources with 0.02% measurement accuracy, supporting both DC and pulse output modes.
• Pulse output mode with a minimum pulse width of 100 us and a rise time of 10 us.
• High-precision source with pA-level resolution and support for multi-channel parallel current expansion.
• Supports 2-wire and 4-wire resistance measurements.
• Compatible with SCPI driver and commands.
