Description

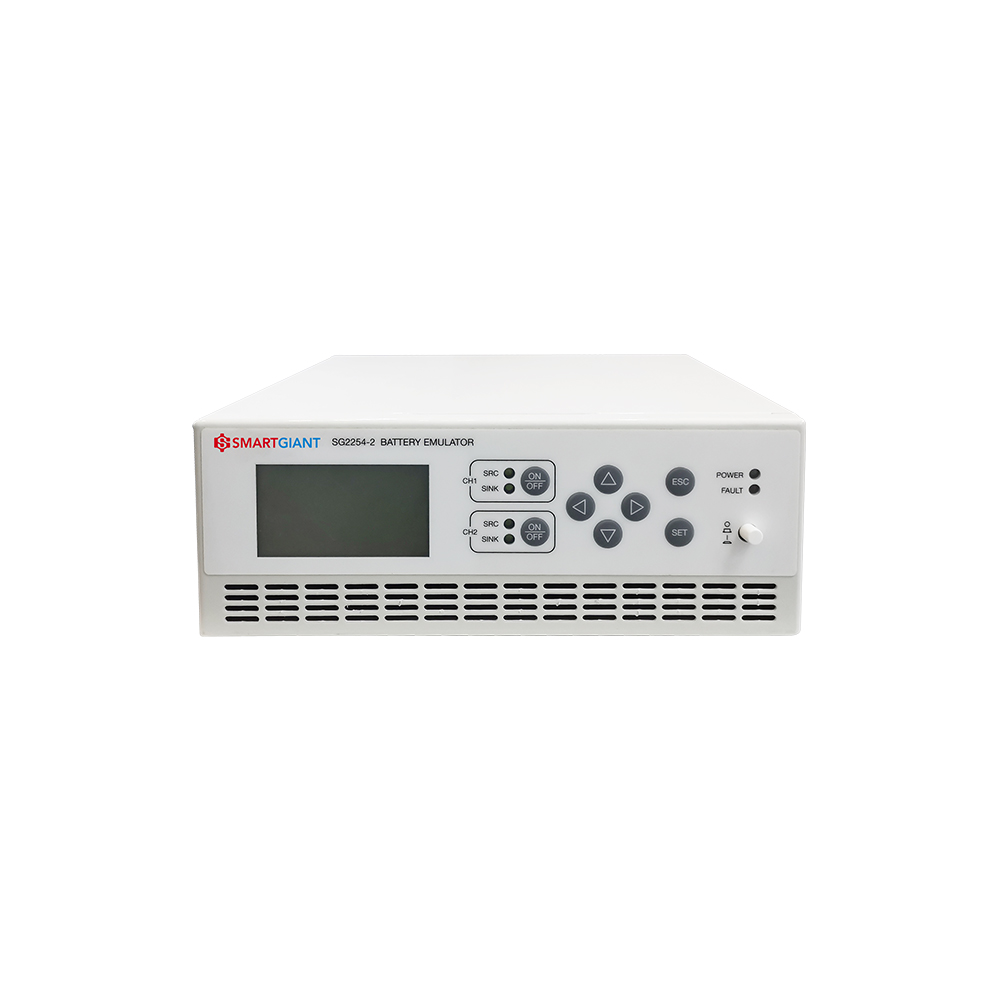

SmartGiant provides three models of battery emulators: 1S dual-channel, 2S dual-channel, and 3S single-channel. Dynamic charging/discharging simulation enables functional circuit testing of electronic products without a real battery. Highly adjustable output voltage/current can be applied to different application scenarios with diverse power requirements.
| Model | 1S | 2S | 3S | |
| Channel | 2× | 2× | 1× | |
| Output | Rated Voltage | 5 V | 8.4 V | 12.6 V |
| Voltage Range | 0–5 V | 0–9 V | 0–15 V | |
| Rated Current | -5–5 A | -6–6 A | -6–12 A | |
| Ripple & Noise | ＜ 20 mVPP | ＜ 50 mVPP | ＜ 100 mVPP | |
| Voltage Accuracy | ± 0.05% | ± 0.01% + 1 mV | ± 0.05% | |
| Line Regulation | ± 0.1% | ± 0.1% | ± 0.1% | |
| Load Regulation | ± 0.1% | ± 0.1% | ± 0.1% | |
| Input | Rated Voltage | 24 V | 220 VAC | 24 V |
| Voltage Range | 21–28 V | 90–265 VAC | 21–28 V | |
| Frequency Range | DC | 47–63 Hz | DC | |
| Full Load Efficiency | > 80% | > 75% | > 80% | |
| Charging | Current Range | 0–5 A | 0–6 A | 0–6 A |
| Voltage Range | 0–15 V | |||
| OCP (Over-Current Protection) | Multipoint OCP, Hiccup Output | 6.3 A (fixed) | Multipoint OCP, Stop Output | |
| SCP (Short-Circuit Protection) | Hiccup Output | Hiccup Output | Stop Output | |
| Cooling | Forced Air Cooling | Forced Air Cooling | Forced Air Cooling | |
| Communication | USB/LAN/RS485 | USB/LAN/RS485 | IIC/TTL | |
| MTBF | 400,000 hrs | 400,000 hrs | 400,000 hrs | |
