PAX Industrial Computer
• CPU+GPU Architecture
• Flexible Customization
• HD Large Screen
• Multiple Interfaces
• Stability and Reliability
• 4G Network
• Wi-Fi
• Compatible Systems
Overview
With the rapid advancement of technologies, digitization and intelligence are increasingly becoming crucial for the future transformation and upgrading of industries. The PAX Industrial Computers are tailor-made for industrial control applications. These systems integrate a range of hardware and software capabilities, featuring robust industrial computers, LCD screens, and numerous communication interfaces that cater to diverse industrial automation needs. The PAX Industrial Computers are compact, reliable, and high-performing, making them ideal for uses in a wide range of sectors including biopharmaceuticals, industrial automation, new energy, education, and research.
Features
 |
CPU+GPU Architecture |
 |
Flexible Customization |
|
|
||
 |
4G Network |
 |
Wi-Fi |
|
|
||
 |
Stability and Reliability |
|
Compatible Systems |
|
|
||
 |
HD Large Screen |
 |
Multiple Interfaces |
|
|
Applications Fields
Specifications
|
Model |
OP8000 Series |
OP1401 |
OP1003 |
||
|
CPU |
Intel i3 / i5 |
Dual-core A72 + quad-core A53 |
|||
|
GPU |
Core frequency 350 MHz, Turbo frequency 1050 MHz; support OpenGL 4.6, OpenCL 2.1 |
Mail-T860 MP4 GPU 800MH； support OpenCV 3.2, OpenCL 1.2 |
|||
|
RAM |
8 GB, 4 GB/16 GB/32 GB (optional) |
4 GB, 2 GB (optional) |
2 GB, 4 GB (optional) |
||
|
Memory |
1TB SSD, 64 GB/128 GB/256 GB/ 512 GB (optional) |
16 GB EMMC, 32 GB/64 GB (optional) |
|||
|
Operating System |
Windows 10 / Windows 8 / Windows 7 / Windows XP / LINUX etc. |
Debian9 / Android 8.1 / Ubuntu |
|||
|

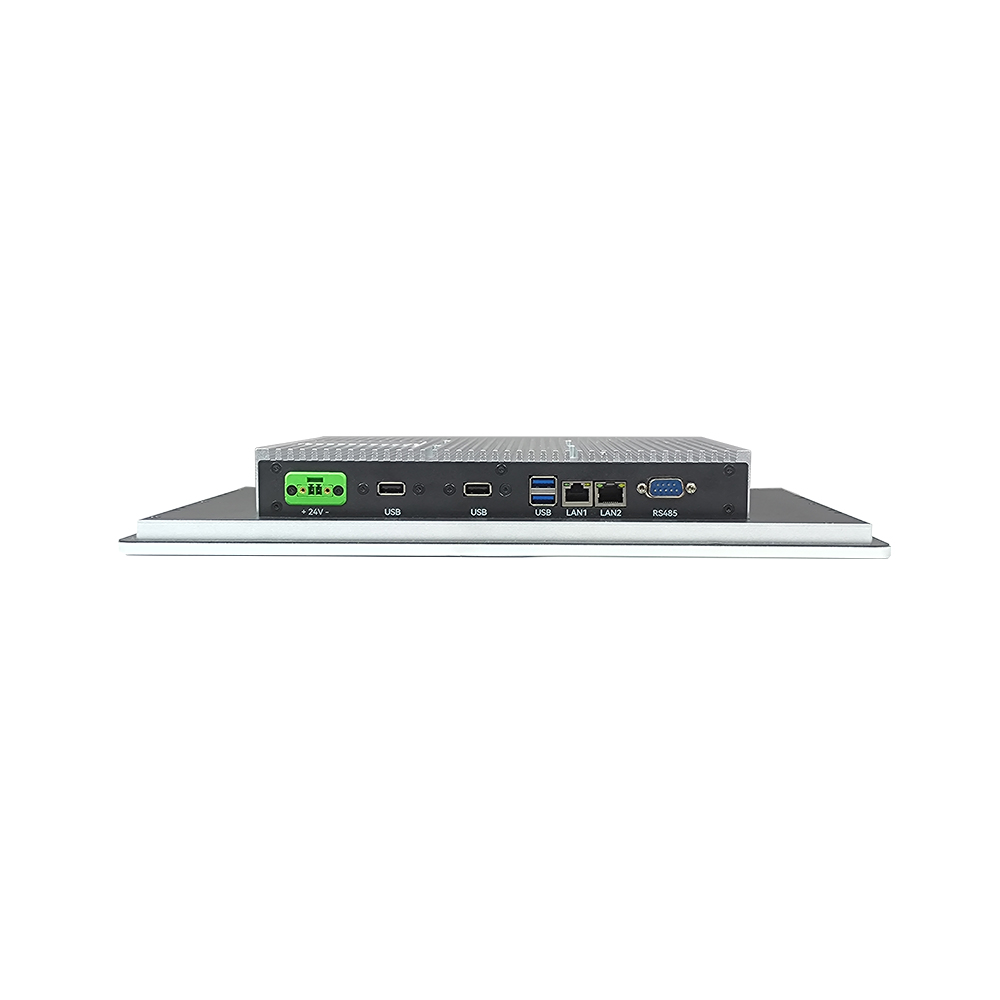

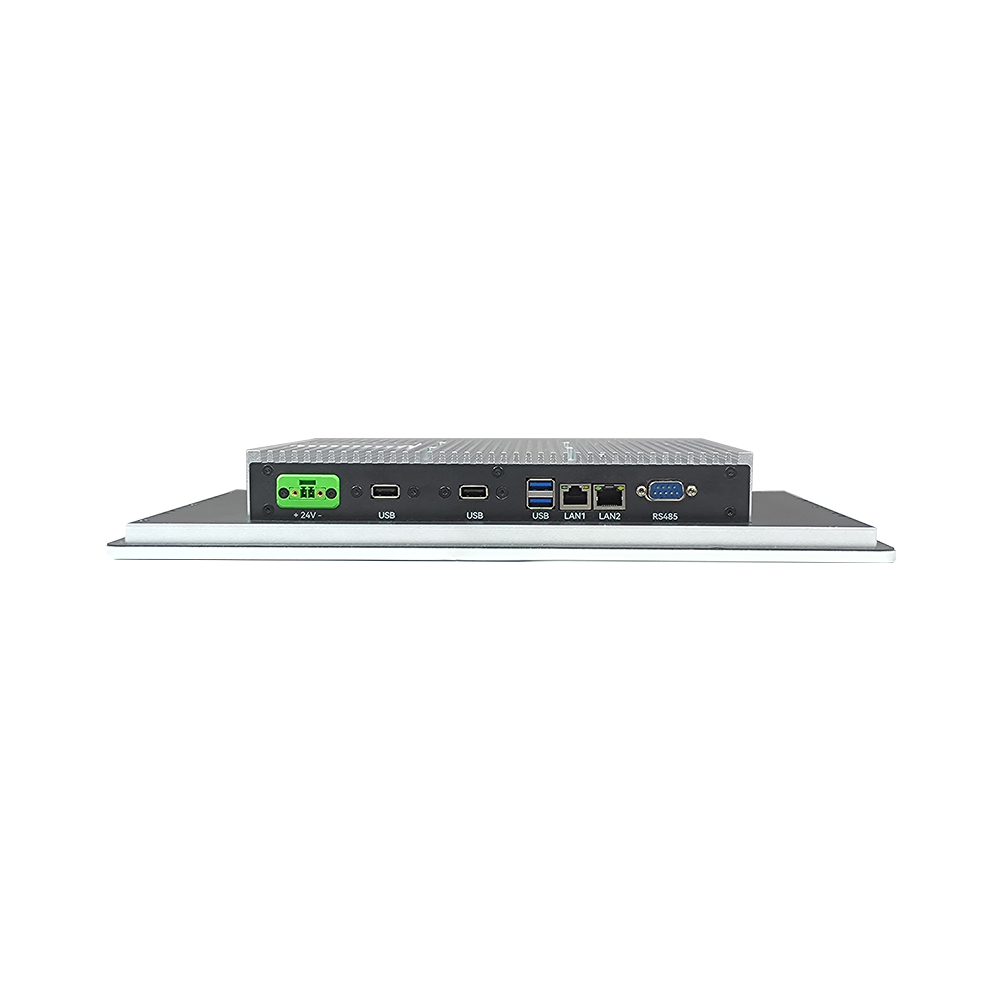

Interface |
Power Interface |
24 V DC power input |
12 V DC power input |
12~30 V DC power input |
|
|
USB Interface |
2*USB 2.0+2*USB 3.0 |
1*USB 2.0+2*USB 3.0 |
2*USB 2.0 |
||
|
Network Interface |
2* Gigabit Ethernet port |
1* 100M network port +1* Gigabit Ethernet port |
|||
|
Serial Port |
1*RS485, 1*RS232 (optional) |
1*UART |
1*RS485+1*RS485 / RS232 switchable |
||
|
Extended I/O |
/ |
16*GPIO+1*ADC |
/ |
||
|
Wi-Fi / Bluetooth |
Support Wi-Fi / Bluetooth，not configured by default |
Support Wi-Fi / Bluetooth |
Support Wi-Fi |
||
|

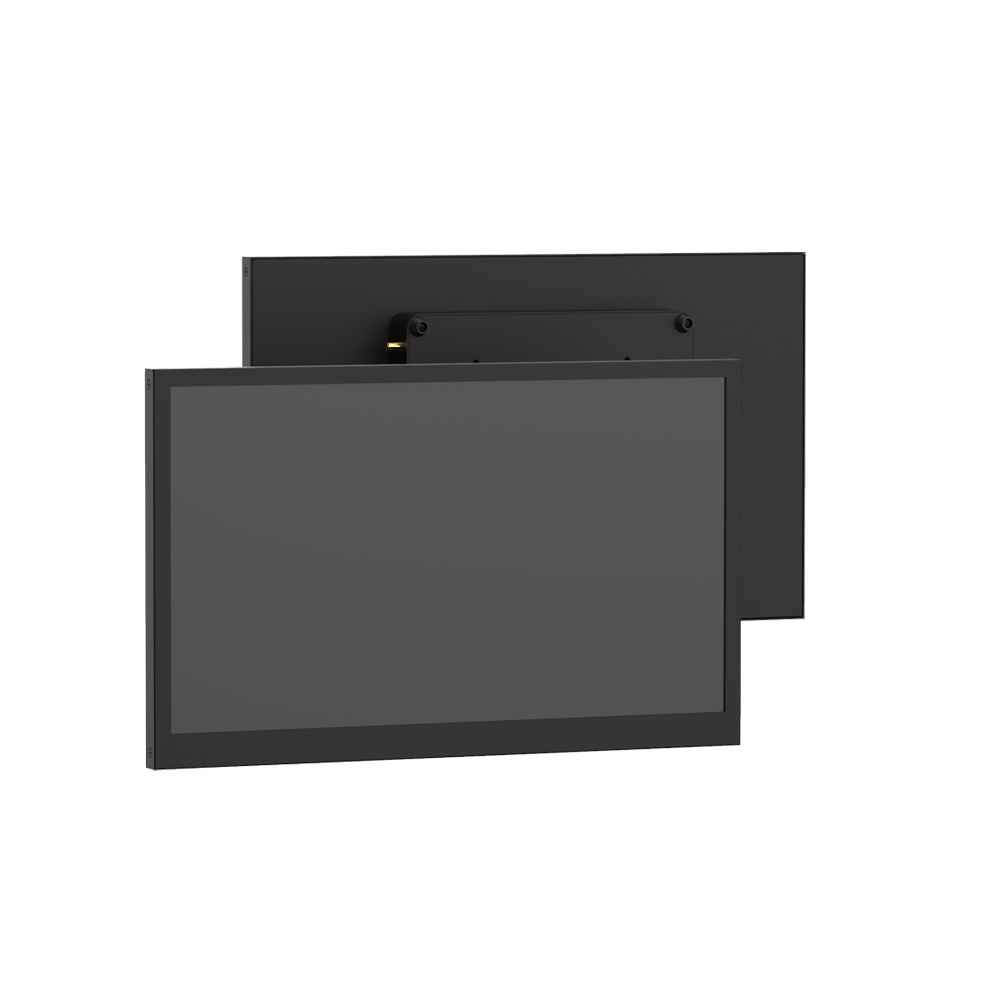

Touch Screen |
Display |
LCD 1920*1080 capacitive touch screen |
LCD 1280*800 capacitive touch screen |
LCD 1920*1080 capacitive touch screen |
|
|

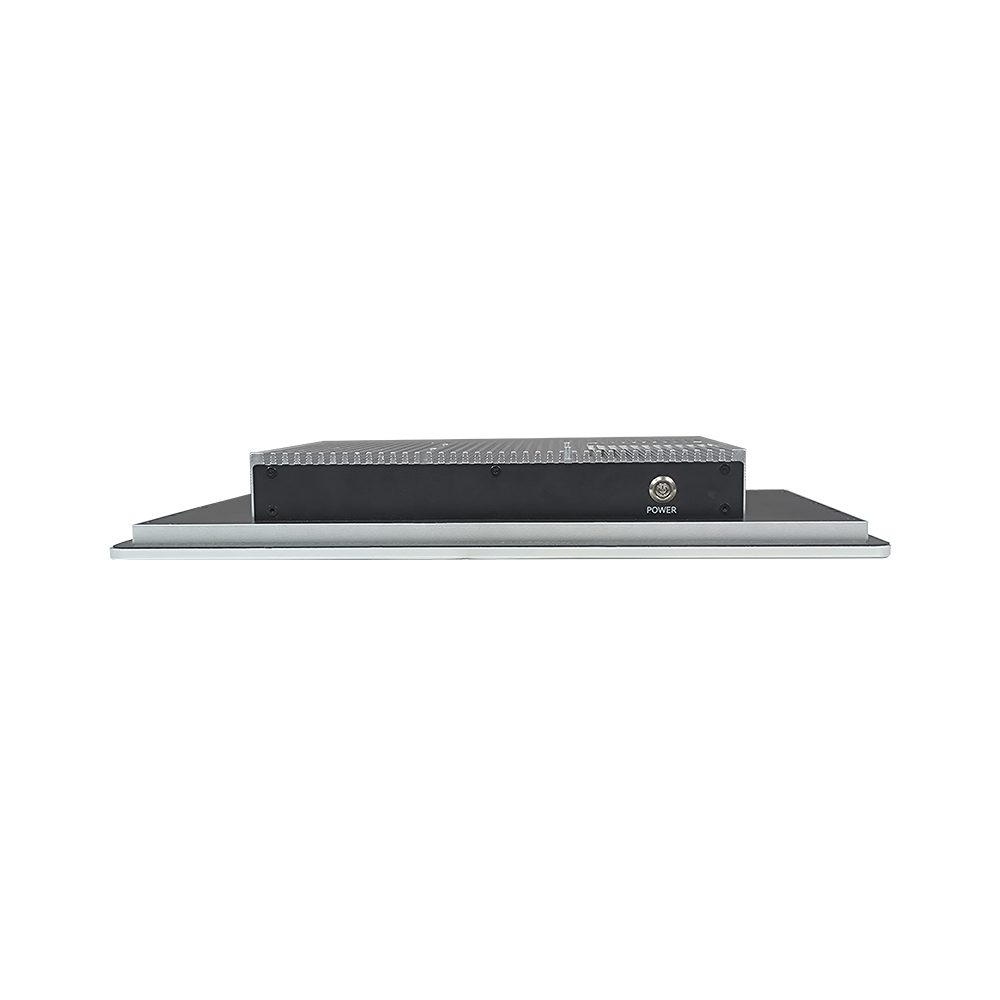

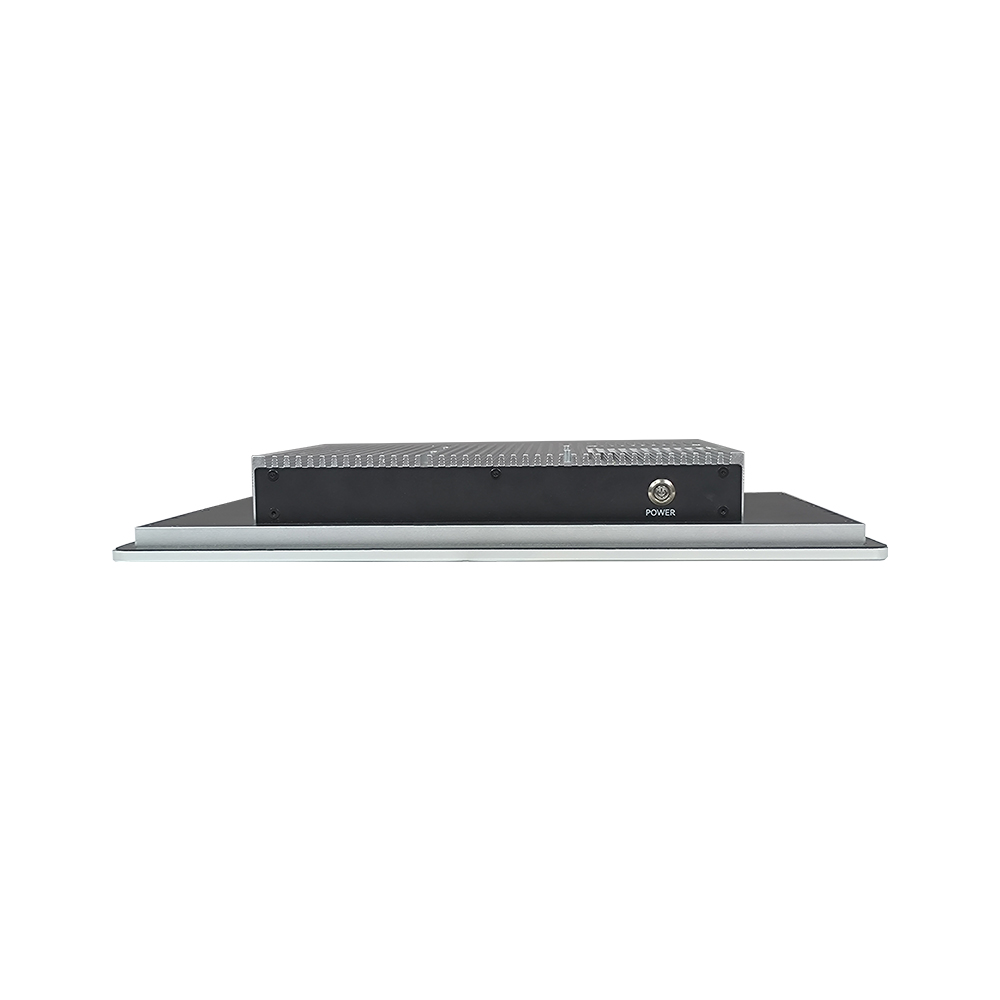

Switch |
Reset-type power switch |
Ship-type power switch |
|||
|
Input Voltage |
DC 24 V±5% |
DC 10 V-15 V |
DC 12 V-30 V |
||
|
Overall Power Consumption |
<120 W |
<25 W |
<25 W |
||
|
Heat Dissipation Method |
Fanless heat dissipation |
Fan for heat dissipation |
Fanless heat dissipation |
||
|
Screen Size |
15.6 inch |
18.5 inch |
21.5 inch |
10.1 inch |
15.6 inch |
|
Product Size |
391*244*52 mm |
468*290*52 mm |
532*362*55 mm |
260*178*50 mm |
368.0*228.2*50.5 mm |
Touch Screen Parameters
|
Screen Size |
15.6 inch /18.5 inch /21.5 inch |
10.1 inch |
|
Number of Pixel |
1920(RGB)*1080 |
1280*800 |
|
Back-Light |
LED |
LED |
|
Luminance |
250 cd/ M2 (standard configuration), 400 cd/M2 (optional） |
250 cd/ M2 |
|
Contrast |
1000 |
1000 |
|
Response Time |
9 ms |
20 ms |
|
Pixel Pitch |
0.17925 mm × 0.17925 mm |
0.1692 mm × 0.1692 mm |
|
Number of Color |
16.7 M |
16.7 M |
|
Viewing Direction |
IPS |
IPS |
|
Touch Type |
Capacitive touch (support ten-point touch) |
Capacitive multi-touch |
|
Life Time |
>50,000 Hrs |
>50,000 Hrs |
