In today’s digital era, AI is revolutionizing the way we live and work, powered by high-performance chips that drive rapid advancements. AI systems must process massive amounts of data, perform complex model training, and execute real-time inference, placing extraordinary demands on a chip’s computing power and speed.

The Rockchip RV1126 System-on-Chip (SoC) meets to the challenge—more than just a chip, it is an intelligent core that combines versatility with powerful computing capabilities, enabling smart devices with unparalleled processing efficiency.

1. Overview of RV1126

The Rockchip RV1126 is a high-performance intelligent SoC designed for vision processing. With its exceptional capabilities, this chip plays a vital role in specific fields such as image processing, speech recognition, and artificial intelligence.

The RV1126 features a quad-core ARM Cortex-A7 processor and an NPU processing unit, significantly enhancing computing power and AI processing efficiency. Its built-in H.265 video decoding engine supports 4K30FPS H.264/H.265 video encoding and decoding, ensuring high-resolution video processing, optimized efficiency, and excellent image quality. These features make it an ideal choice for advanced vision and AI-driven applications.

2. Technical Features of RV1126

The Rockchip RV1126 is a robust SoC with the following technical specifications:

• Processing Power
  • Quad-core ARM Cortex-A7 + RISC-V MCU for powerful computing performance.
  • 2.0 TOPS NPU enabling efficient AI acceleration with INT8/INT16 support.
• Imaging and Video Processing
  • 14MP ISP with an integrated post-processor for enhanced image quality.
  • Supports 4K H.264/H.265 hardware encoding and decoding.
  • 2D graphics engine supportingrotation, mirroring, scaling, and alpha blending.
  • IEP module for image enhancement and noise reduction.
• Display and Camera
  • VOP supports 1080P@60FPS and multiple video formats (RGB888, ARGB888, RGB565, YCbCr422, YCbCr420, YCbCr444).
  • Dual MIPI CSI/LVDS/sub-LVDS + 16-bit parallel input for camera connectivity.
• Memory and Storage
  • Supports 32-bit DDR3/DDR3L/LPDDR3/DDR4/LPDDR4B for high-speed data access.
  • Storage options include eMMC 4.51, SPI Flash, and NAND Flash.
• Connectivity and Interfaces
  • Supports Wi-Fi, Gigabit Ethernet, 100M USB-to-Ethernet, and 4G modules.
  • Integrated RK809 audio codec for high-quality sound processing.
  • A wide range of peripheral interfaces: USB 2.0 OTG/Host, SDIO 3.0, multiple I2S, I2C, SPI, CAN, UART, ADC, and MIPI CSI/DSI.

3. RV1126 Application Scenarios

With its advanced video processing and AI computing capabilities, the Rockchip RV1126 chip is widely used in AI-driven applications:

Face Recognition: Integrated into smart attendance, access control, and gate systems, ensuring high-accuracy and efficient recognition.

Safety Helmet Recognition: Trained on extensive safety helmet datasets, this system integrates with on-site cameras to automatically detect proper helmet usage and compliance. It enhances safety supervision and ensures secure construction operations.

Passenger Flow Statistics: .AI-based visual analytics offer precise real-time people and vehicle counting, ideal for applications in transportation hubs,shopping malls, and public spaces.

Smart Traffic: Supports license plate recognition, toll station management, and traffic flow monitoring, enhancing overall traffic management efficiency.

OCR Recognition: Delivers fast and accurate text extraction for document digitization, ID authentication, and license plate recognition.

Autonomous Driving: Leverages deep learning-based image recognition for lane detection, traffic sign recognition, and pedestrian tracking, enabling vehicle control for autonomous driving applications.

Video Calls & Remote Conferencing: Supports 4K video encoding/decoding and ePTZ technology, ensuring high-definition video communication and seamless remote conferencing experiences.

4. Horus AI Camera Powered by RV1126

Smartgiant, with extensive expertise in hardware and software development for embedded systems, has launched the Horus AI Camera series, powered by the Rockchip RV1126 chipset, along with the Horus AI Camera Software Development Kit. These products highlight Smartgiant’s advanced R&D capabilities and offer robust AI vision solutions.

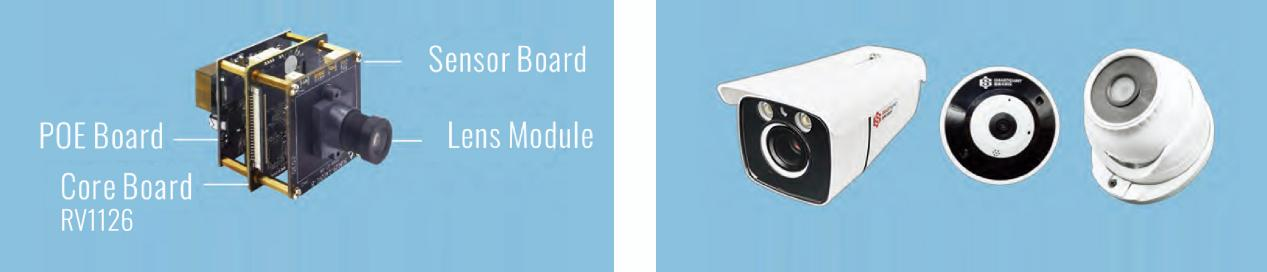

The Horus AI Camera features the Rockchip RV1126 processor and offers optional Sony IMX series sensors for superior image capture. It integrates Power over Ethernet (PoE) technology, ensuring efficient power and data transmission through a single cable. Designed with an IPC-38 Board standard structure, the camera allows for rapid enclosure customization to meet varying application needs. From prototyping to mass production, the camera streamlines and accelerates the entire development process.

The Horus AI Camera Software Development Kit (SDK) is built on a Linux-based system and includes hardware and sensor drivers, advanced image processing, media services, and application support. With integrated AI model development, training, and deployment capabilities, it simplifies AI integration and interface customization. Offering a PC-like user experience, the SDK facilitates the seamless deployment of AI applications on the camera, significantly reducing development time and complexity.





The Rockchip RV1126 SoC and innovative products like Smartgiant’s Horus AI Camera are transforming the future of smart devices. By combining cutting-edge technology with practical AI applications, these solutions empower developers and businesses to seamlessly integrate AI into everyday life and industrial environments. With continuous advancements, these smart solutions will keep pushing the boundaries of innovation, making life safer, smarter, and more convenient.
