We are looking forward to cooperating with you and providing our best services for you, as well as our test and measurement equipments, FPGA Control Modules,Test and Measurement Instruments. We look ahead for your cooperation sincerely. We warmly welcome you to contact us and please feel free to speak out your needs Good quality is factory’ existence, dedication to high-quality is our life, putting you first is our mission. Smartgiant Technology has already had a lot of top factories and qualified technology teams in China, offering the best test and measurement equipments and services to worldwide customers. In recent years, our factory prides itself on a team of integrated advanced technologies, delivering excellence. We are eager to cooperate with foreign companies which care much on the real quality, stable supply, effective capability and superior service. The world is our market – this test and measurement equipments will be supplied globally to East Asia, South Africa, Mexico, Eastern Europe, etc. As a professional manufacturer, we are capable of meeting your requirements, tailoring production according to your needs is fine, each product has been professionally certified to meet industry standards.
Get Test & Measurement Technologies & Solutions!
Specializing in FPGA-based Control, Processing, and Scceleration technologies
Test And Measurement Equipments Boost Profit – Consider other products?

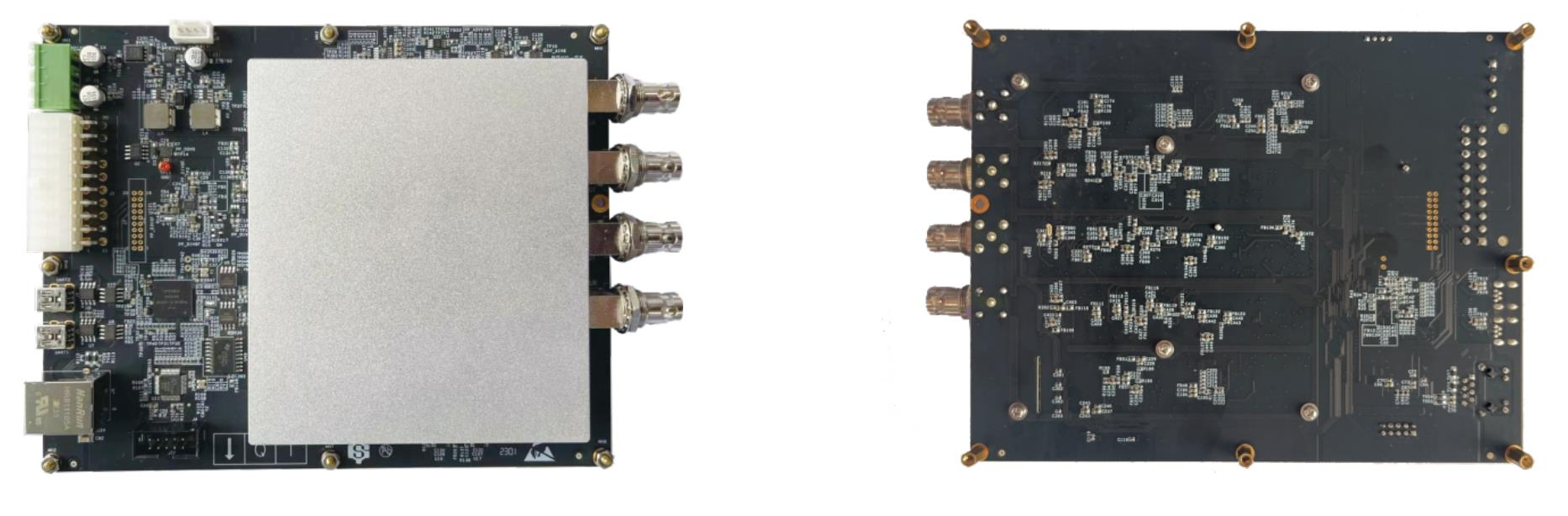

3.75 GHz RF Acquisition and Playback Module
• Main Controller: XCKU040-2FFVA1156I chip form Xilinx UltraScale series
• RF Performance: Supports dual channels, with 2-lane TX channels supporting 10MHz to 6GHz frequency output; 2-lane RX high-speed adjustable data channels offering frequency input from 10MHz to 8GHz
• Extensive Expansion Interfaces: 2 HPC FMC expansion interfaces, 2 Gigabit Ethernet interfaces, 2 JTAG download and debugging interfaces and 1 M.2 socket interface
• ADC Performance: 14-bit resolution, 3 GSPS sampling rate
• DAC Performance: 16-bit resolution, 12.6 GSPS sampling rate
• Customization: offer customization services for the hardware interfaces and functions of the FPGA development board, along with ADC and DAC submodule
Test Bench
- High-performance processor, adopting ZYNQ-7000 series processor, dual-core ARM Cortex-A9, with main frequency up to 866 MHz.
- High precision multimeter, resistance measurement 0 Ω to 100 MΩ, voltage measurement -60 V to 60 V, current measurement 0 to 3 A.
- Audio analyzer, supporting differential input/output and single ended input/output functions, with a sampling rate of up to 192 kps, and capable of measuring signal amplitude, frequency, THD, THD+N.
- Signal generator, supporting output of sine wave, square wave, triangular wave, up to 1 MHz output.
- Oscilloscope module, supporting ±0.9 Vpp input, up to 5 MHz bandwidth, 125 MHz sampling rate.
- Support multi-channel output power supply, multi-function serial port communication, DO output, button simulation, multi-channel load current switching measurement.
- Internal integrated relay switching matrix, RF switch, up to 18 GHz RF signal switching.
MIPI Tester
• MIPI D-PHY, 4 lane/2.5Gbps
• Supports I2C@1M /400k I3C@12.5Mbps
• Supports Open/Short measurement
• Offers 7-channel programmable PSUs (including 1-channel 14.5V and 1-channel 24V), enabling voltage and current read back measurement
• Provides 100kHz to 250MHz programmable master clock
• Customizable 10* DIOs and a pair of LVDS TX/RX differential pairs
• Supports USB 3.0 host, USB 3.0 slave (type C), Gigabit Ethernet port
Horus AI Camera
• AI camera modules based on Rockchip RV1126
• Quad core ARM Cortex A7 processor
• Support NNIE performance up to 2.0Tops
• Offer USB2.0 x 1/Ethernet port x 1/UART x 2/TF card expansion interface
• Accelerates AI algorithm hardware deployment
• IPC 38-Board standard structure design, quick on-demand customization of enclosures
Battery Emulator
• Dynamic charging/discharging simulation
• Highly adjustable output voltage/current
• Built-in bidirectional DC-to-DC buck converter
• Leakage detection available
PCIe High-Speed Acquisition Card
- 8-bit two-channel digitizer
- Maximum sampling rate up to 5 GS/s
- Analog bandwidth up to 500 MHz
- PCIe 3.0 x 8 interface
- FPGA based on Xilinx Kintex UltraScale, XCKU040
- Customization for hardware, FPGA and software
