Understanding How Does a Vector Network Analyzer Work
The Vector Network Analyzer (VNA), one of Smartgiant‘s most sophisticated products, is essential to the characterization of RF systems and components. We will examine how a vector network analyzer works in this post, going over its features, capabilities, and uses.
Key Features that Enhance Performance
Understanding how does a vector network analyzer work also involves appreciating its key features. Our Smartgiant VNA boasts impressive transmission and reflection tracking capabilities, with accuracy levels of ±0.1 dB / ±1° for both. This means that our VNA can accurately track changes in amplitude and phase, allowing for detailed analysis of how signals interact with the DUT.
Moreover, the VNA can measure between 2 to 16,001 points, making it highly versatile for various testing scenarios. The flexibility in measurement points enables us to capture comprehensive data across a wide frequency range. Additionally, the measurement time per point is typically around 70 microseconds, ensuring that we can conduct tests efficiently without sacrificing accuracy.

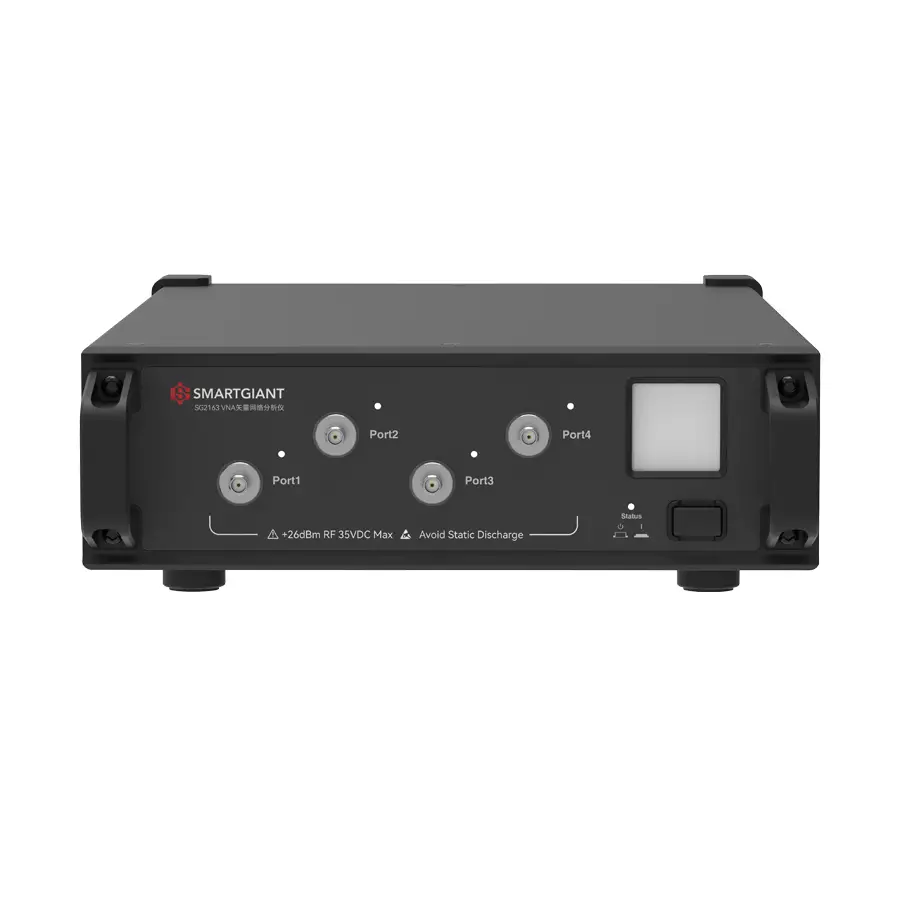

Another noteworthy feature is the compact design of our VNA, which measures 230 mm × 370 mm × 70 mm. This customizable configuration allows users to fit the unit into their existing setups without requiring significant changes to their testing environments. Our VNA operates within a temperature range of 0 °C to +50 °C, making it suitable for use in various settings.
Practical Applications of a Vector Network Analyzer
The ability to understand how does a vector network analyzer work extends to its practical applications across multiple industries. In telecommunications, for instance, VNAs are used extensively in the development and testing of communication devices. We utilize our VNA to ensure that antennas and filters meet performance specifications, contributing to reliable wireless communications.
In the aerospace industry, where precision and reliability are paramount, our VNAs help engineer sophisticated radar and communication systems. By accurately assessing the performance of these devices, we play a role in ensuring safety and efficacy in critical applications.
Moreover, in the field of materials science, VNAs assist researchers in analyzing the dielectric properties of materials, further contributing to advancements in technology. Our commitment at Smartgiant is to provide tools that facilitate innovation across diverse sectors.
Conclusion
With exceptional specifications, versatile applications, and a commitment to quality, our Vector Network Analyzer is an indispensable tool for anyone serious about ensuring the performance and reliability of their electronic devices. Explore our products today and elevate your testing capabilities with Smartgiant!
